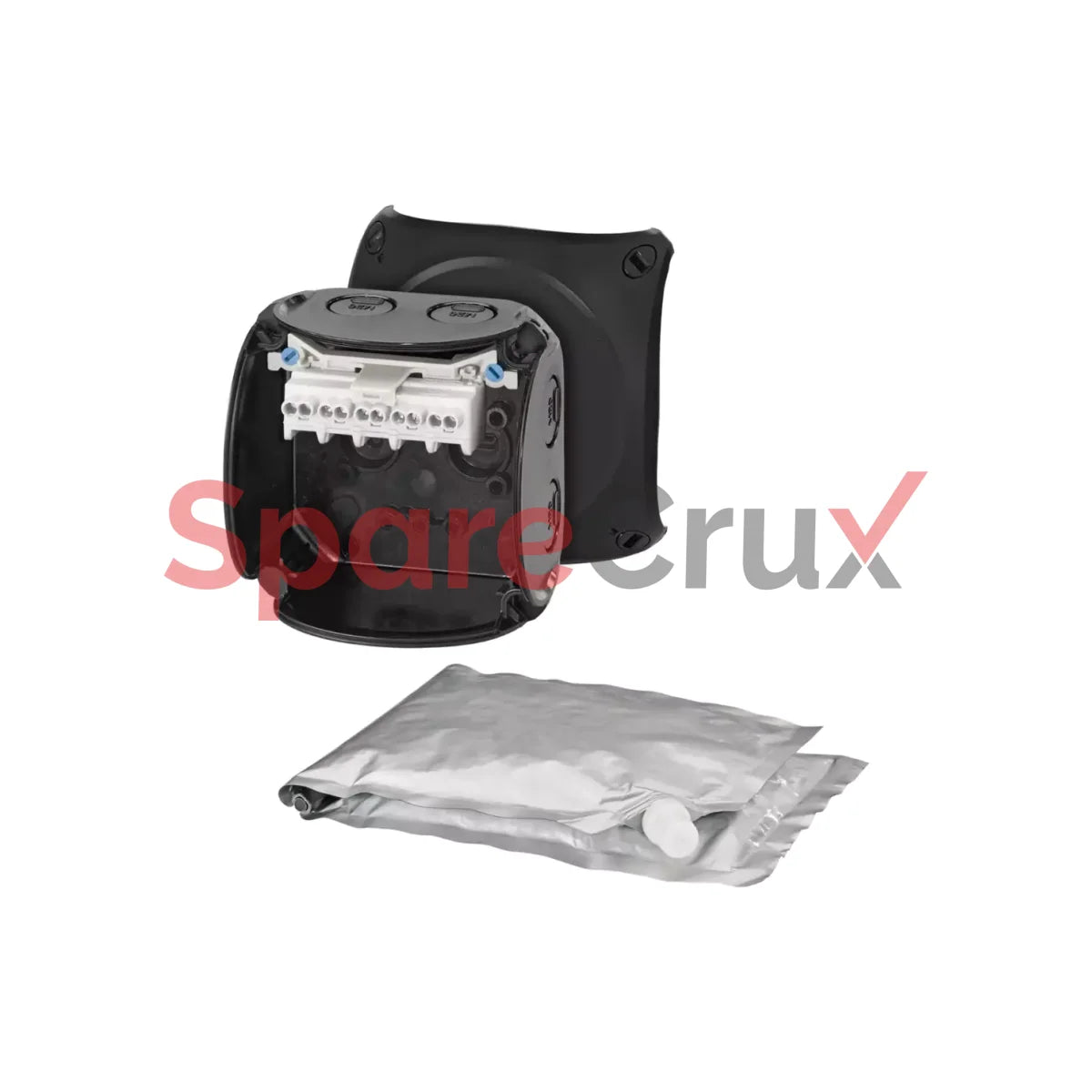

WP 0202 B | HENSEL | Cable Junction Box IP 68
₹ 4,860.00
● Available for backorder, with an estimated lead time of 8 to 12 weeks.
Couldn't load pickup availability
Warranty
Warranty
We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.
Delivery and Shipping
Delivery and Shipping
We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.
WP 0202 B | HENSEL | Cable Junction Box IP 68
₹ 4,860.00
Unit price
/
Unavailable
Manufacturer Part Number (MPN)
WP 0202 B
Original Equipment Manufacturer
HENSEL ELECTRIC
Description
Description
WP 0202 B
- 0.75-2.5 mm², Cu 3~
- With terminals
- 5-pole per pole 8 x 0,75-1 mm² r / f, 6 x 1,5 mm² r / f, 4 x 2,5 mm² r / f, 2 x 4 mm² r / f
- Cable entries via knockouts, order ASS separately (see cable entry systems LES)
- Cable junction box for encapsulating
- For ground installation without live loads or in risk of condensation formation and ingress of liquids
- Usable for heating cable / heating tape up to max. 70 °C surface temperature
- With sealing compound and sealing plug
- In case of re-installation or testing the sealing compound can be removed easily
- Durability of sealing compound to processing ≥ 12 months at a storage temperature of 5 - 50 °C
- External brackets for wall fixing included
- Colour: black, RAL 9011
Terminal Data
| degree of protection | IP 68 submersion up to 20 meter, 168 hours |
| rated insulation voltage | Ui = 690 V A.C./D.C. |
| rated current: | 20 A |
| material | PC-GFS (polycarbonate) |

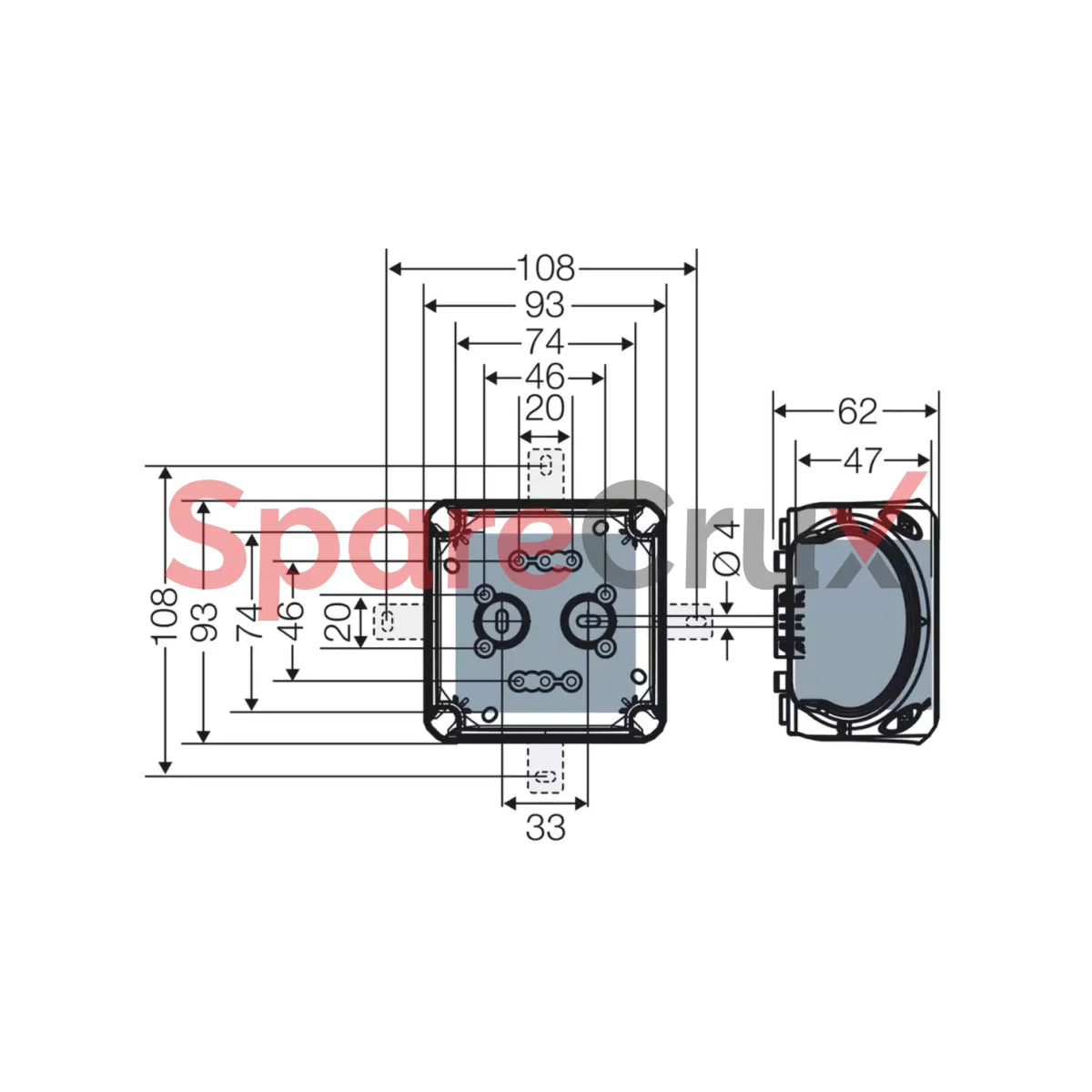

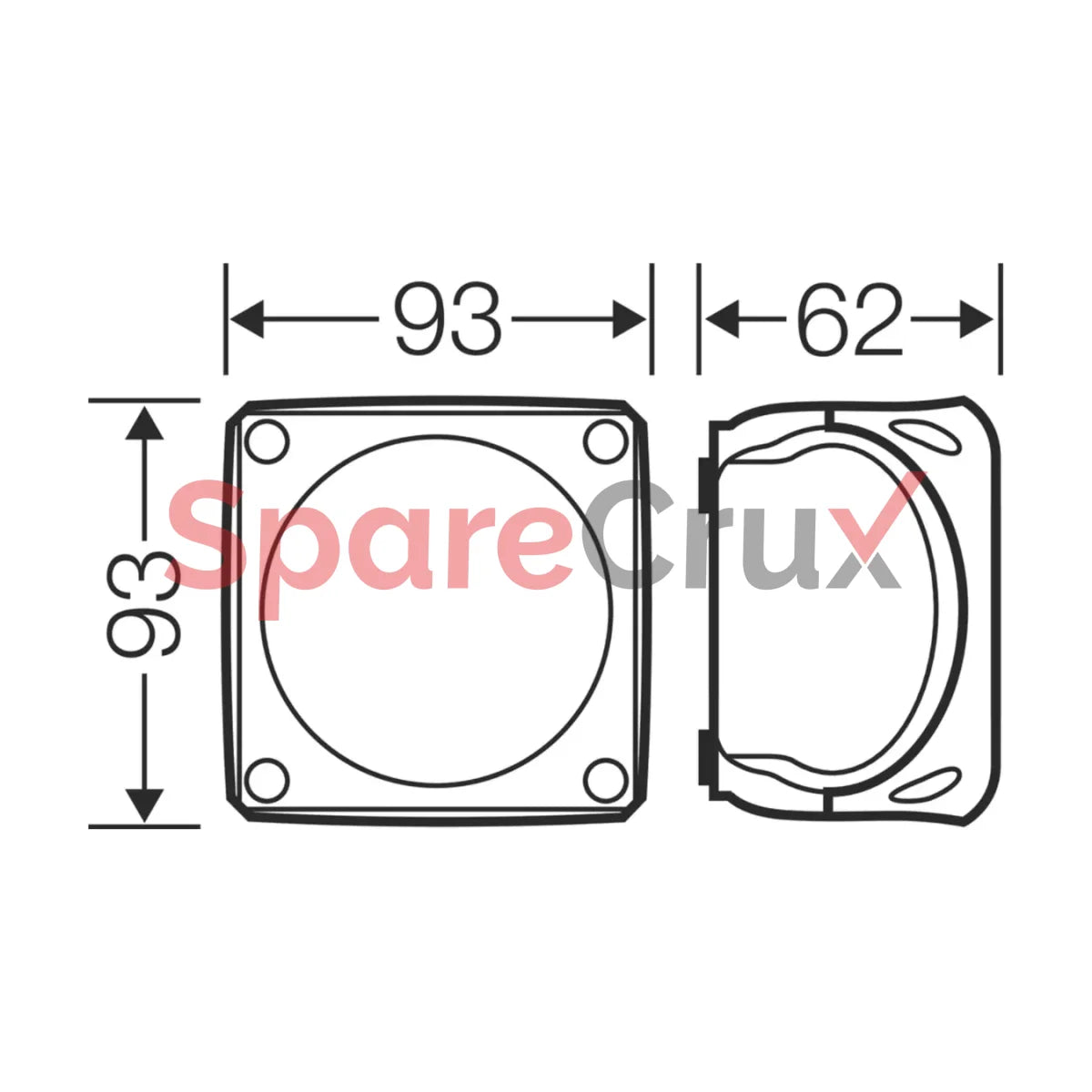

| width | 93 mm |
| height | 93 mm |
| depth | 62 mm |
| weight | 0,578 kg |
| tightening torque for terminal | 0.5 Nm |
| in accordance with |
EN 60670-1
|
