SPARECRUX is an authorized distributor for HENSEL ELECTRIC

RX 0207 T | HENSEL | Cable Junction Boxes IP 66

₹ 4,536.00

●   Available for backorder, with an estimated lead time of 8 to 12 weeks.

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Manufacturer Part Number (MPN)

RX 0207 T

Original Equipment Manufacturer

HENSEL ELECTRIC

Description

RX 0207 T

  • 0.5-4 mm², Cu
  • 7 terminal blocks WKM 2.5/15
  • Per terminal 2 x 0,5-2,5 mm² f or 2 x 0,5-4 mm² sol,
    see Technical details for more information about terminal assignment
  • Nominal current of the terminal depending on conductor cross section. See instruction manual or www.hensel-electric.de > Products
  • Terminal blocks, by Wieland
  • Terminal marking, neutral
  • For hazardous areas, can be used in Zone 2 and Zone 22

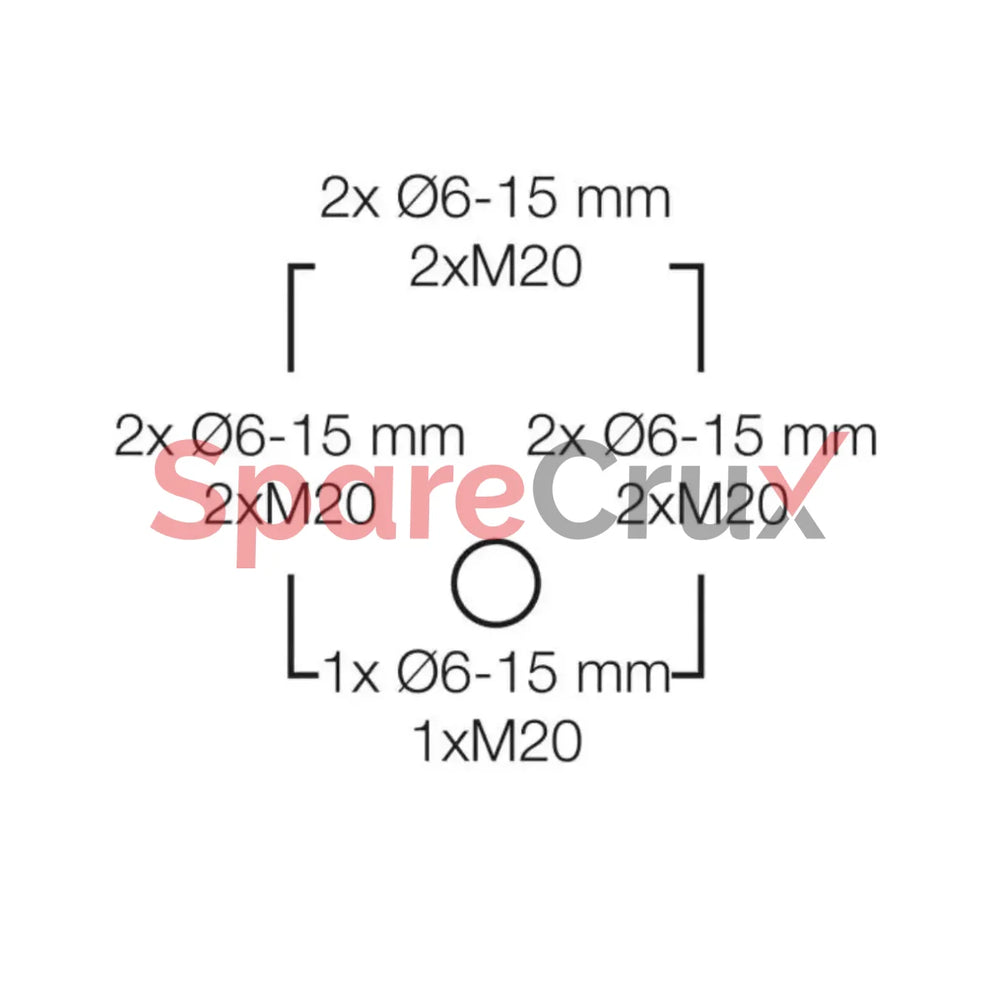

  • Cable entries can be drilled individually, order AXM separately (see cable entry systems LES)
  • Permitted size of the cable entry system: M20
  • "Weatherproof" resistant to weather influences (UV due to solar radiation, protected against rainwater, temperature resistant, impact resistant, etc.)
  • External brackets for wall fixing included
  • Colour: black, RAL 9011

Technical Data

rated insulation voltage Ui = 275 V
rated current 11,5 A (4 mm²)
9,8 A (2,5 mm²)
8,2 A (1,5 mm²)
tightening torque for terminal 0,4 Nm
weight 0,148 kg
degree of protection IP 66
material PC (Polycarbonate)

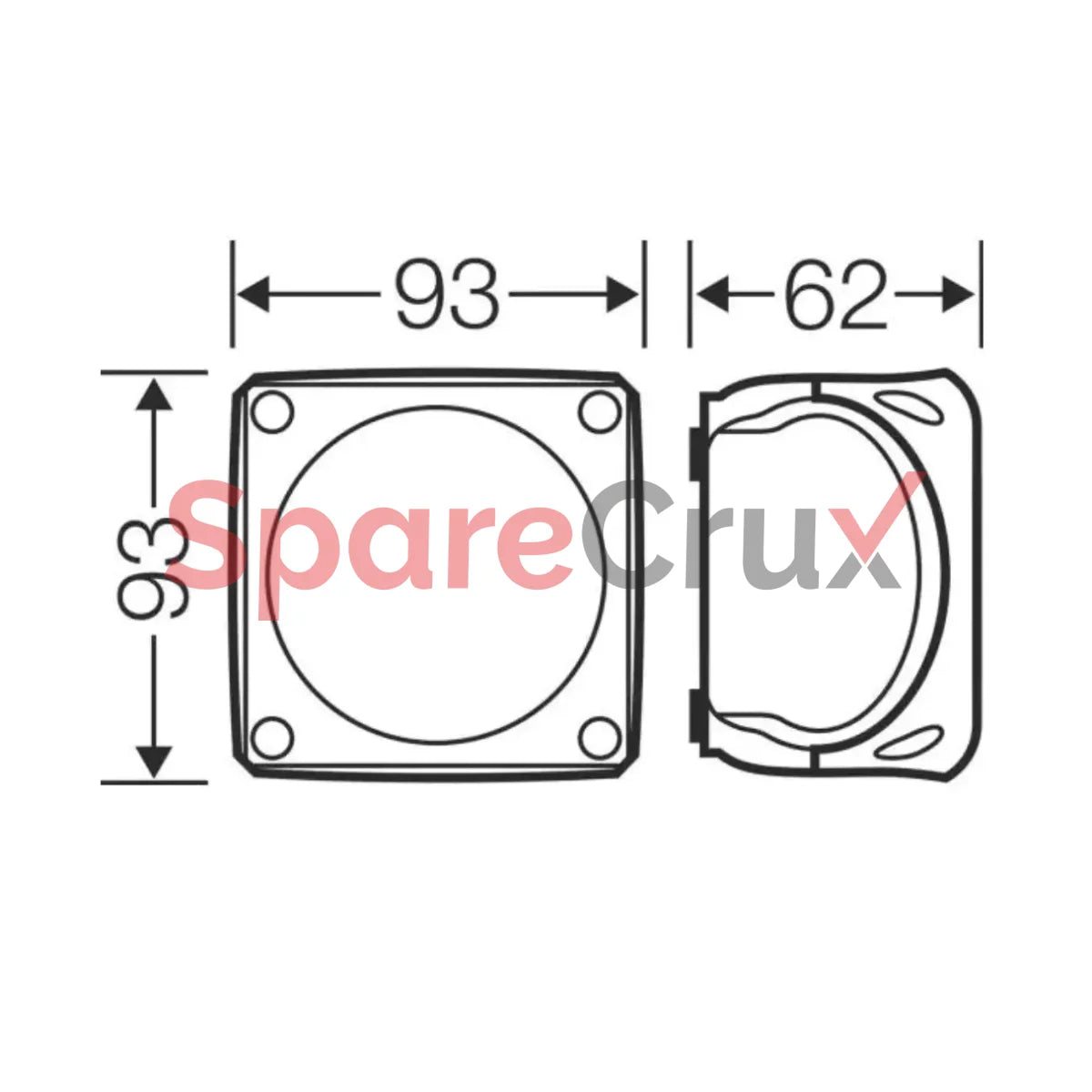

width 93 mm
height 93 mm
depth 62 mm
in accordance with IEC 60670-22
DIN EN IEC 60079-1
DIN EN IEC 60079-7
DIN EN 60079-31
Explosion protection code II 3G Ex ec IIC T6 Gc
II 3D Ex tc IIIC T85 Dc
