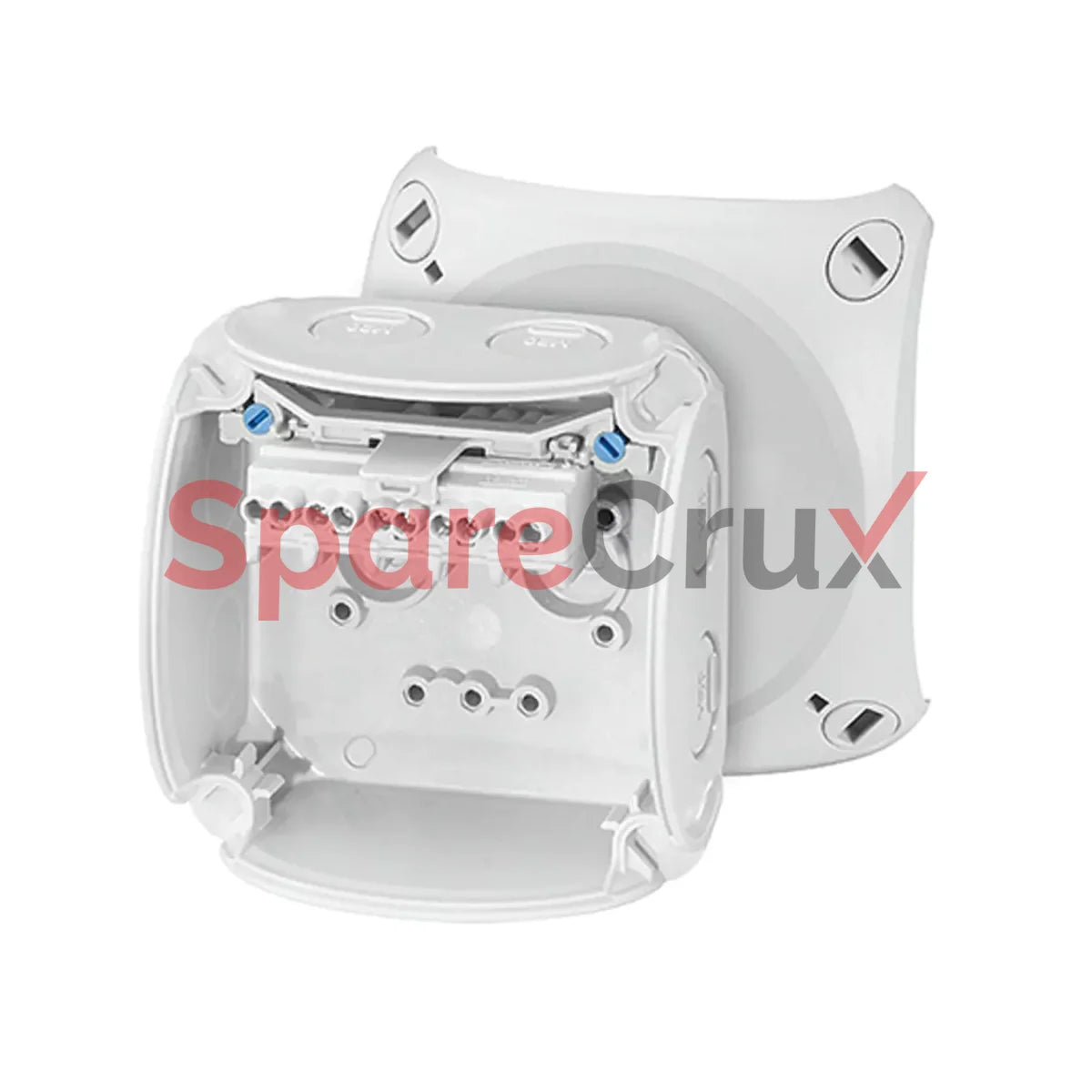

KF 0202 G | HENSEL | Cable junction box
₹ 688.00
● Available for backorder, with an estimated lead time of 8 to 12 weeks.
Couldn't load pickup availability
Warranty
Warranty
We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.
Delivery and Shipping
Delivery and Shipping
We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.
KF 0202 G | HENSEL | Cable junction box
₹ 688.00
Unit price
/
Unavailable
Manufacturer Part Number (MPN)
KF 0202 G
Original Equipment Manufacturer
HENSEL ELECTRIC
Description
Description
KF 0202 G
- 0.75-2.5 mm², Cu 3~
- Terminal with 2 clamping units per pole
- 5-pole per pole 8 x 0,75-1 mm² r / f, 6 x 1,5 mm² r / f, 4 x 2,5 mm² r / f, 2 x 4 mm² r / f
- Cable entries via knockouts, order AKM separately (see cable entry systems LES)
- "Weatherproof" resistant to weather influences (UV due to solar radiation, protected against rainwater, temperature resistant, impact resistant, etc.)
- Saltwater-proof
- "Offshore applications"
- Lid fasteners sealable without accessories
- Retaining strap and external brackets for wall fixing included
- Colour: grey, RAL 7035
| rated insulation voltage | Ui = 690 V A.C./D.C. |
| rated current: | 20 A |
| material | PC-GFS (polycarbonate) |
| degree of protection | IP 66 / IP 67 / IP 69 IP 67, temporary submersion IP 69, water pressure max. 100 bar, water temperature max. 80 °C, distance ≥ 0.15 m |

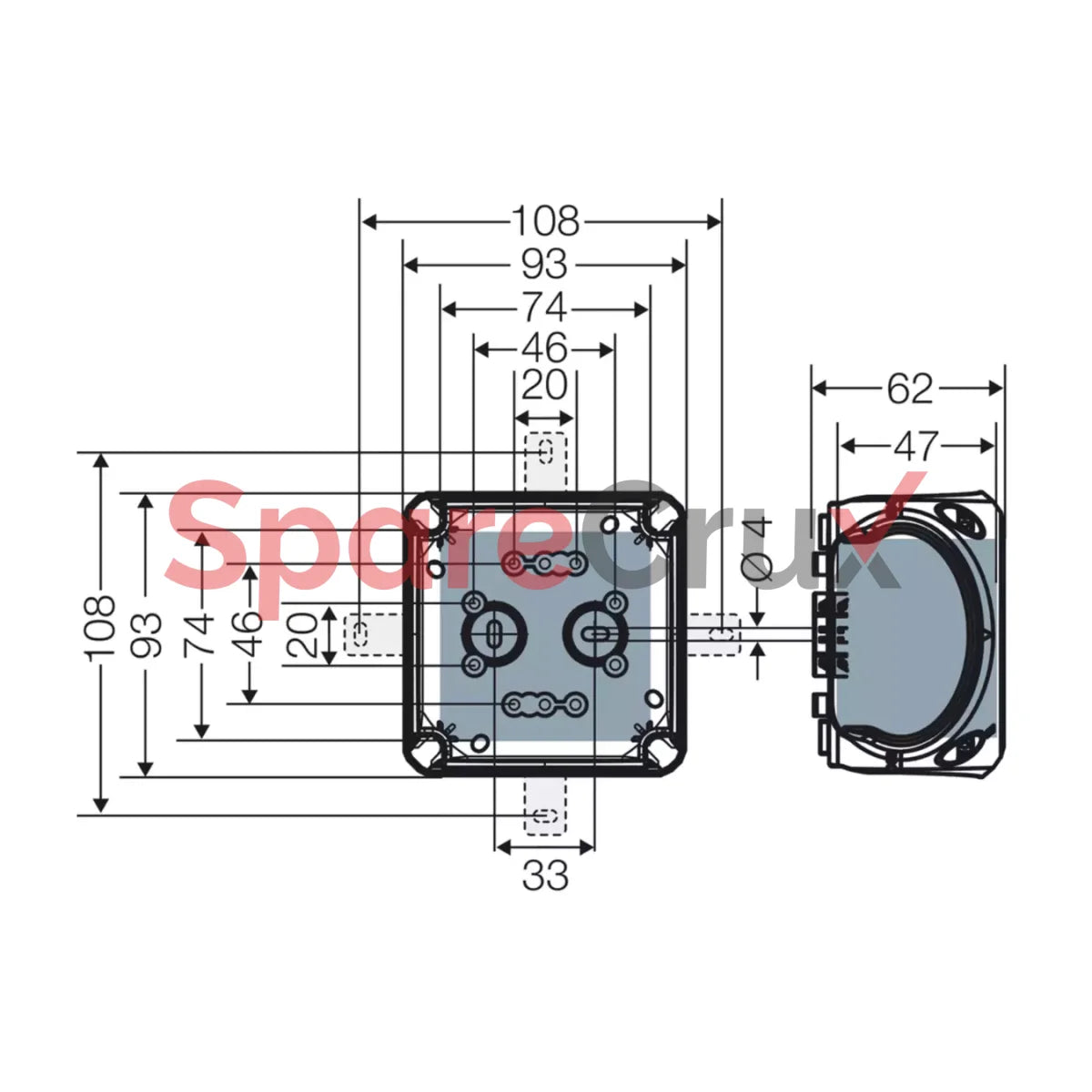

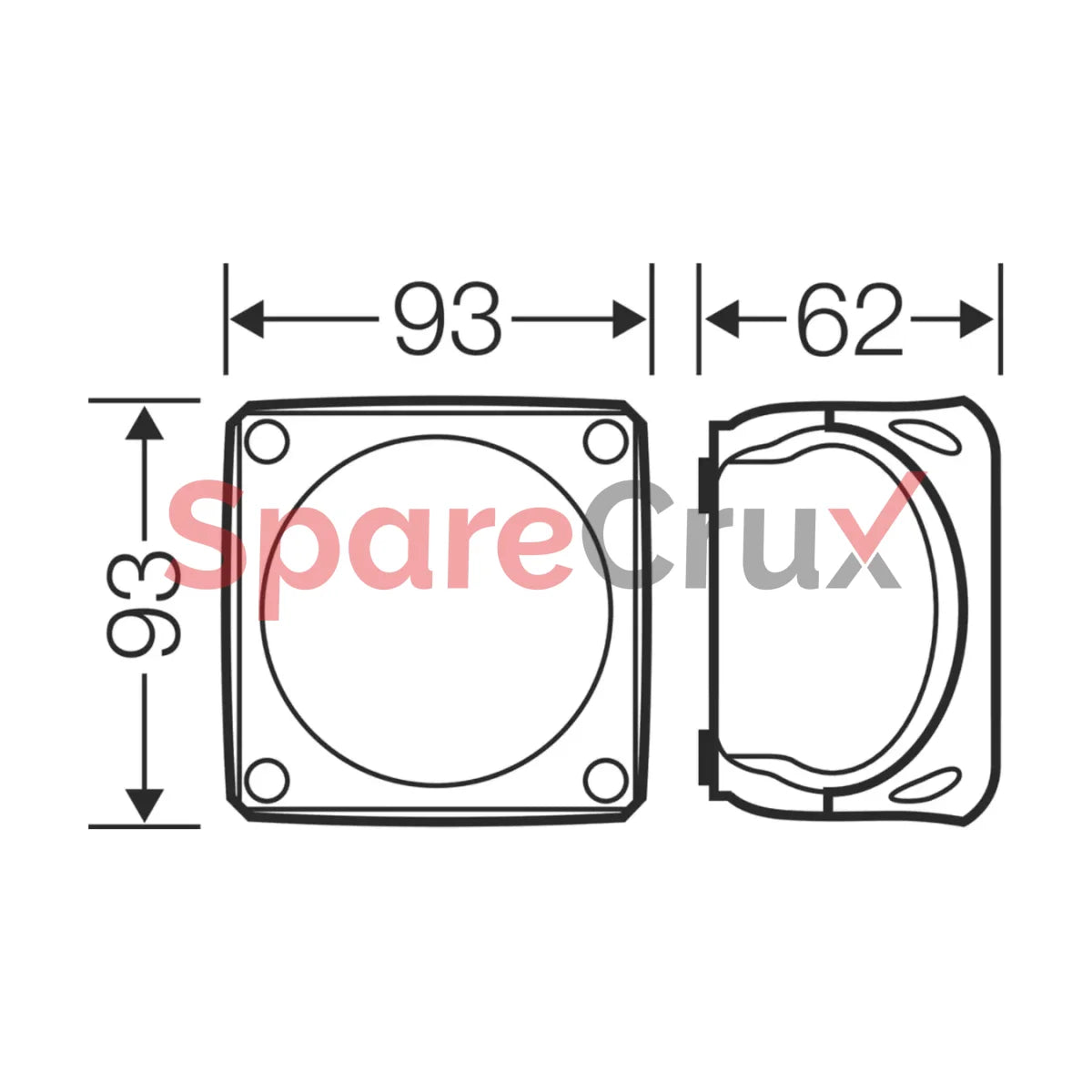

| width | 93 mm |
| height | 93 mm |
| depth | 62 mm |
| weight | 0,141 kg |
| tightening torque for terminal | 0.5 Nm |
| in accordance with | IEC 60670-22 |
| in accordance with | DNV GL - Certificate No: TAE00000EE |
