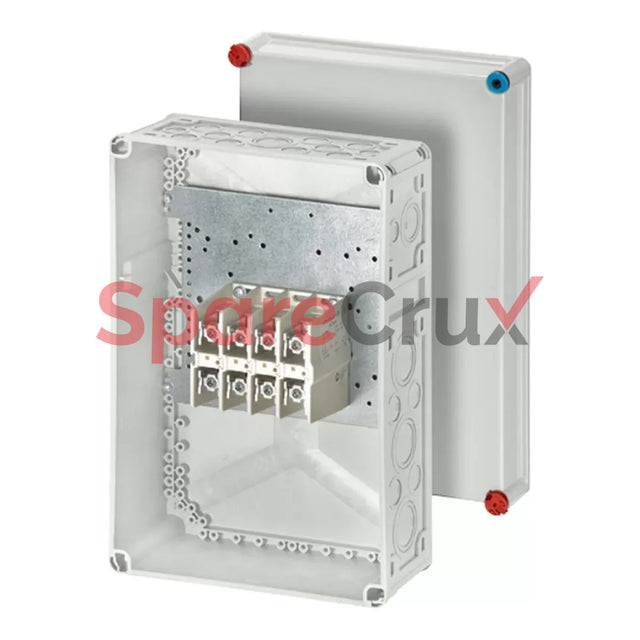

K 1204 | HENSEL | Cable Junction Box
₹ 35,456.00
● Available for backorder, with an estimated lead time of 8 to 12 weeks.
Couldn't load pickup availability
Warranty
Warranty
We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.
Delivery and Shipping
Delivery and Shipping
We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.
K 1204 | HENSEL | Cable Junction Box
₹ 35,456.00
Unit price
/
Unavailable
Manufacturer Part Number (MPN)
K 1204
Original Equipment Manufacturer
HENSEL ELECTRIC
Description
Description
K 1204
- 16-150 mm², Cu/Alu 3~
- With terminals
- 4-pole per pole 2 x 16-150 mm², 4 x 16-70 mm², conductors can be inserted from the front into the clamping unit, terminal technology, see annex DK Cable junction boxes
- Sealable
- Order cable glands, flanges and other accessories separately as required
- Before connecting, aluminum conductors must be pre-treated according to the appropriate technical recommendations, see technical information aluminum conductors
- For normal environment and protected outdoor
- Colour: grey, RAL 7035
Technical Data
| rated insulation voltage | Ui = 690 V A.C./D.C. |
| rated current: | 250 A |
| material | PC (Polycarbonate) |
| degree of protection | IP 65 |
| conductor cross section | 2 x 16-50 Cu/Alu, sol (round) mm² 2 x 16-150 Cu/Alu, s / f (round) mm² 2 x 50-150 Cu/Alu, sol (sector) mm² 2 x 35-150 Cu, s (sector) mm² |
| conductor cross section | 2 x 50-120 Alu, s (sector) mm² 4 x 16-50 Cu/Alu, sol (round) mm² 4 x 16-70 Cu/Alu, s / f (round) mm² 4 x 50-70 Cu/Alu, sol (sector) mm² |
| conductor cross section | 4 x 35-70 Cu, s (sector) mm² 4 x 35-50 Alu, s (sector) mm² |
| width | 300 mm |
| height | 450 mm |
| depth | 170 mm |
| weight | 6,295 kg |
| tightening torque for terminal | 20.0 Nm |
