SPARECRUX is an authorized distributor for HENSEL ELECTRIC

DK 0404 G | HENSEL | Cable junction box

₹ 576.00

●   Available for backorder, with an estimated lead time of 8 to 12 weeks.

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Manufacturer Part Number (MPN)

DK 0404 G

Original Equipment Manufacturer

HENSEL ELECTRIC

Description

DK 0404 G

  • 1.5-4 mm², Cu 3~
  • Terminal with 2 clamping units per pole
  • 5-pole per pole 8 x 1,5 mm² r / f, 6 x 2,5 mm² r / f, 4 x 4 mm² r / f, 2 x 6 mm² r / f
  • With elastic membranes, which can be removed for cable entry via cable glands, sealing range 9.0-17.0 mm
  • With one cable entry in the bottom, sealing range Ø 6.0-15.0 mm
  • Lid fasteners sealable without accessories
  • Retaining strap and external brackets for wall fixing included
  • Colour: grey, RAL 7035
  • To close opened membranes use grommets type EDK. Degree of protection = IP 66.

Technical Data

Rated insulation voltage Ui = 690 V A.C./D.C.
Rated current: 32 A
Material PP (polypropylene)
Degree of protection IP 66

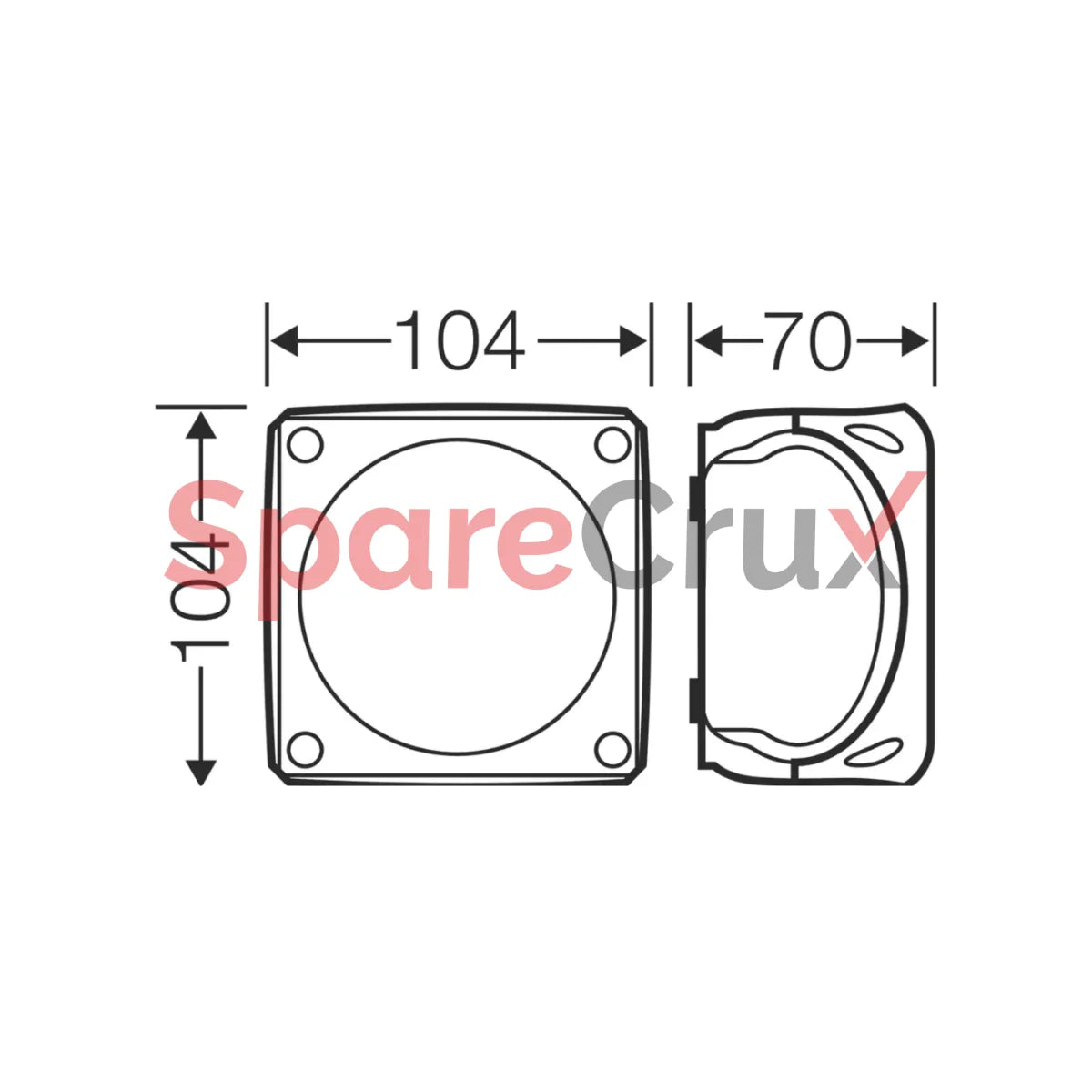

Width 104 mm
Height 104 mm
Depth 70 mm
Weight 0,158 kg
Tightening torque for terminal 0.7 Nm
In accordance with IEC 60670-22
Dk 0404 G | Hensel Cable Junction Box
HENSEL ELECTRIC

DK 0404 G | HENSEL | Cable junction box

₹ 576.00

DK 0404 G

  • 1.5-4 mm², Cu 3~
  • Terminal with 2 clamping units per pole
  • 5-pole per pole 8 x 1,5 mm² r / f, 6 x 2,5 mm² r / f, 4 x 4 mm² r / f, 2 x 6 mm² r / f
  • With elastic membranes, which can be removed for cable entry via cable glands, sealing range 9.0-17.0 mm
  • With one cable entry in the bottom, sealing range Ø 6.0-15.0 mm
  • Lid fasteners sealable without accessories
  • Retaining strap and external brackets for wall fixing included
  • Colour: grey, RAL 7035
  • To close opened membranes use grommets type EDK. Degree of protection = IP 66.

Technical Data

Rated insulation voltage Ui = 690 V A.C./D.C.
Rated current: 32 A
Material PP (polypropylene)
Degree of protection IP 66
Width 104 mm
Height 104 mm
Depth 70 mm
Weight 0,158 kg
Tightening torque for terminal 0.7 Nm
In accordance with IEC 60670-22
